Langzauner LTD. was established in 1924 and since that time has been engaged in the development and manufacturing of woodworking machines. Due to constant investments in the fields of technology and construction, the company developed into a modern, purposeful production factory. In addition to the standard machines, we manufacture special machines produced for the different technical areas. The long standing faith of our traders and customers is proof of Langzuaner's high-quality and good cooperation.

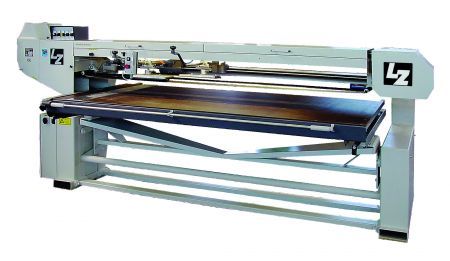

LZG-M-II: METAL BELT SANDER WITH 2 BELTS
CLICK HERE FOR LZG-M-II METAL SANDING LITERATURE IN PDF FORMAT
The Langzauner LZG-M-II Metal Polishing / Belt Sanding Machine provides versatility with variable drive belt speed both clockwise and counterclockwise rotation. With its ease-of-use features like workpiece illumination and an optional brushing device, the LZG-S is a must-have for all types of Metal polishing and grinding applicationwoodworking professionals. This machine is equipped with 2 independent belts to save time in changing papers. Sanding shoe will move automatically between each belt when required
Mechanical Details
 |
 |
 |
 |
| Table desk for table height adjustment. Controls belt speed & rotation as well as workpiece illumination. | Drawer grinding equipment with extracted table insertion. | Folding exhaust cover for improved exhaust effect when sanding long pieces. Closed drive wheel helps to avoid dust deposits. | Optional brushing device for structuring, sanding, brushing, smoothing, and polishing of Metal surfaces. Swiveling brushing device also available. Motorpower 4kW |
Technical Specifications
| Belt Sanding Motor | 5.5kW |
| Belt Speeds | Electronc Speed 5-30m/sec |
| Table Size | 2500 / 3000 mm x 1000 mm |
| Drive Pulley Diameter | 3 X 300mm each side |
| Throat Clearance | 350 mm |
| Belt Length | 6800 / 7800 mm |
| Belt Width | 150 mm |
| Table Height Adjustment | 350 mm via Electro Motor |
| Table Loading Weight | 200 Kg |
| Sanding Pad Size | 320x145mm shoe moves automatically |
