Langzauner LTD. was established in 1924 and since that time has been engaged in the development and manufacturing of woodworking machines. Due to constant investments in the fields of technology and construction, the company developed into a modern, purposeful production factory. In addition to the standard machines, we manufacture special machines produced for the different technical areas. The long standing faith of our traders and customers is proof of Langzuaner's high-quality and good cooperation.

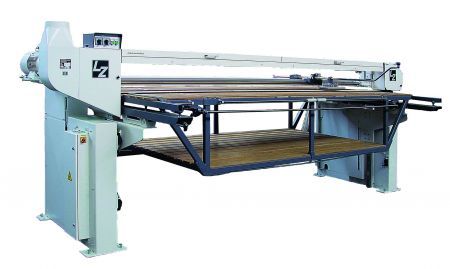

LZG-M-I-SY: SINGLE BELT SANDER WITH LOWER TABLE

CLICK HERE FOR LZG-M-I-SY LITERATURE IN PDF FORMAT

The Langzauner LZG-M-I-SY Metal Polishing / Belt sanding machine provides versatility with variable drive belt speed both clockwise and counterclockwise rotation. With its ease-of-use features like workpiece illumination and an optional brushing device, the LZG-M-I-SY is a must-have for all types of metal polishing and grinding applications. This machine is similar in design to our LZG-M-I but is also equipped with lower table for sanding of larger parts.

Mechanical Details


Table desk for table height adjustment. Controls belt speed & rotation as well as workpiece illumination.	Drawer grinding equipment with extracted table insertion.	Folding exhaust cover for improved exhaust effect when sanding long pieces. Closed drive wheel helps to avoid dust deposits.	Optional brushing device for structuring, sanding, brushing, smoothing,and polishing of metalsurfaces. Swiveling brushing device also available. Motorpower:4 kW

Technical Specifications

Belt Sanding Motor	5.5 kW
Belt Speeds	Electronic Speed 5-30m/sec
Table Size	2500 / 3000 mm x 1000 mm
Drive Pulley Diameter	350 mm
Throat Clearance	Completely Free Area Below machine
Belt Length	6800 / 7800 mm
Belt Width	150 mm
Table Height Adjustment	500 mm
Total Loading Weight	300 Kg
Sanding Pad Size	320 x 145mm
