The Casati Veneer Stitcher series are the perfect machine addition for the custom veneer shop. As the market trends in the United States shift more towards in-house veneer production, many shops are starting to diversify their manufacturing to include in-house veneer processing. The Casati Z-Series stitchers give these shops quality veneer joining capability at entry level prices. The machine basically works like a sewing machine, joining pre-cut veneer leaves together with a thermo-adhesive glue thread.

Z-1000: VENEER STITCHER

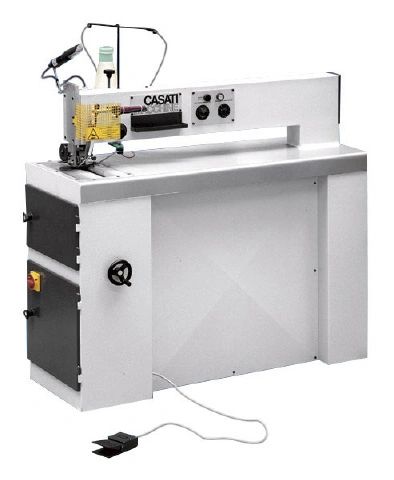

?? ? ?The Casati Z-1000 Veneer Stitcher is designed for the intermediate veneer panel manufacturer. The machine is supplied with a heavy base and many other critical features necessary for increased production.


Features
  • Variable Speed Feeding System
  • Stitching System With Variable Pitch & Height
  • Quick Heat Up Time
  • Automatic Cutting of the Glue Thread Feed
  • Electronic Adjustment of the Temperature
  • Easy Access to the Glue Thread Feed
  • Easy Thread Replacement
  • Foot Pedal Control
  • All Parts Available in the U.S.

Technical Specifications

Arm Length 1000 mm
Max. Veneer Thickness 2 mm
Feed Speed 10-25 m/min
Power Requirements 0.50 kW
Voltage 220 VAC / 3 Phase
Weight 200 kg
Length 1350 mm
Width 500 mm
Working Height 1300 mm
